编号 | 型号 | 尺寸 | |||||
φE | ΦD | Φd | W | B | L | ||

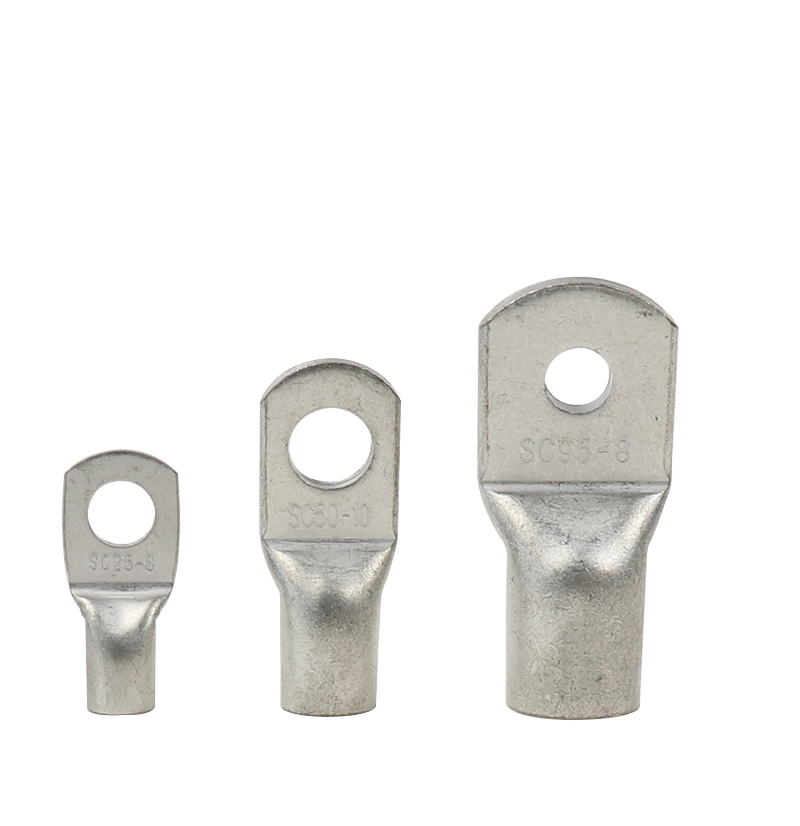

WB0002-1001 | SC16-5NH | 5.2 | 7.1 | 5.4 | 12.0 | 12.0 | 30.0 |
WB0002-1002 | SC16-6NH | 6.5 | 7.1 | 5.4 | 12.0 | 12.0 | 30.0 |
WB0002-1003 | SC16-8NH | 8.4 | 7.1 | 5.4 | 12.5 | 12.0 | 30.0 |
WB0002-1004 | SC16-10NH | 10.5 | 7.1 | 5.4 | 16.0 | 12.0 | 33.0 |
WB0002-1005 | SC16-12NH | 13.0 | 7.1 | 5.4 | 17.0 | 12.0 | 35.0 |
WB0002-1006 | SC25-5NH | 5.2 | 8.8 | 6.8 | 13.0 | 12.0 | 33.0 |
WB0002-1007 | SC25-6NH | 6.5 | 8.8 | 6.8 | 13.0 | 12.0 | 33.0 |
WB0002-1008 | SC25-8NH | 8.4 | 8.8 | 6.8 | 15.0 | 12.0 | 33.0 |
WB0002-1009 | SC25-10NH | 10.5 | 8.8 | 6.8 | 18.0 | 12.0 | 34.0 |
WB0002-1010 | SC25-12NH | 13.0 | 8.8 | 6.8 | 18.0 | 12.0 | 35.0 |
WB0002-1011 | SC25-14NH | 15.0 | 8.8 | 6.8 | 20.0 | 12.0 | 38.0 |
WB0002-1012 | SC35-5NH | 5.2 | 10.6 | 8.2 | 16.0 | 14.0 | 38.0 |
WB0002-1013 | SC35-6NH | 6.5 | 10.6 | 8.2 | 16.0 | 14.0 | 38.0 |
WB0002-1014 | SC35-8NH | 8.4 | 10.6 | 8.2 | 16.0 | 14.0 | 38.0 |
WB0002-1015 | SC35-10NH | 10.5 | 10.6 | 8.2 | 18.0 | 14.0 | 39.0 |
WB0002-1016 | SC35-12NH | 13.0 | 10.6 | 8.2 | 19.0 | 14.0 | 40.5 |
WB0002-1017 | SC35-14NH | 15.0 | 10.6 | 8.2 | 20.0 | 14.0 | 42.0 |
WB0002-1018 | SC50-6NH | 6.5 | 12.4 | 9.5 | 17.8 | 16.0 | 45.0 |
WB0002-1019 | SC50-8NH | 8.4 | 12.4 | 9.5 | 17.8 | 16.0 | 45.0 |
WB0002-1020 | SC50-10NH | 10.5 | 12.4 | 9.5 | 17.8 | 16.0 | 45.0 |
WB0002-1021 | SC50-12NH | 13.0 | 12.4 | 9.5 | 20.0 | 16.0 | 45.0 |
WB0002-1022 | SC50-14NH | 15.0 | 12.4 | 9.5 | 22.0 | 16.0 | 46.0 |
WB0002-1023 | SC50-16NH | 17.0 | 12.4 | 9.5 | 24.0 | 16.0 | 47.0 |
WB0002-1024 | SC70-8NH | 8.4 | 14.7 | 11.2 | 21.0 | 18.0 | 50.0 |
WB0002-1025 | SC70-10NH | 10.5 | 14.7 | 11.2 | 21.0 | 18.0 | 50.0 |
WB0002-1026 | SC70-12NH | 13.0 | 14.7 | 11.2 | 21.0 | 18.0 | 50.0 |
WB0002-1027 | SC70-14NH | 15.0 | 14.7 | 11.2 | 21.0 | 18.0 | 50.0 |
WB0002-1028 | SC70-16NH | 17.0 | 14.7 | 11.2 | 25.0 | 18.0 | 51.0 |
WB0002-1029 | SC95-8NH | 8.4 | 17.4 | 13.5 | 25.0 | 20.0 | 55.0 |
WB0002-1030 | SC95-10NH | 10.5 | 17.4 | 13.5 | 25.0 | 20.0 | 55.0 |
WB0002-1031 | SC95-12NH | 13.0 | 17.4 | 13.5 | 25.0 | 20.0 | 55.0 |
WB0002-1032 | SC95-14NH | 15.0 | 17.4 | 13.5 | 25.0 | 20.0 | 55.0 |
WB0002-1033 | SC95-16NH | 17.0 | 17.4 | 13.5 | 25.0 | 20.0 | 55.0 |
WB0002-1034 | SC120-8NH | 8.4 | 19.4 | 15.0 | 28.0 | 22.0 | 63.0 |
WB0002-1035 | SC120-10NH | 10.5 | 19.4 | 15.0 | 28.0 | 22.0 | 63.0 |
WB0002-1036 | SC120-12NH | 13.0 | 19.4 | 15.0 | 28.0 | 22.0 | 63.0 |
WB0002-1037 | SC120-14NH | 15.0 | 19.4 | 15.0 | 28.0 | 22.0 | 63.0 |
WB0002-1038 | SC120-16NH | 17.0 | 19.4 | 15.0 | 28.0 | 22.0 | 63.0 |
WB0002-1039 | SC120-20NH | 21.0 | 19.4 | 15.0 | 28.0 | 22.0 | 63.0 |
WB0002-1040 | SC150-8NH | 8.4 | 21.2 | 16.5 | 30.5 | 26.0 | 70.0 |
WB0002-1041 | SC150-10NH | 10.5 | 21.2 | 16.5 | 30.5 | 26.0 | 70.0 |
WB0002-1042 | SC150-12NH | 13.0 | 21.2 | 16.5 | 30.5 | 26.0 | 70.0 |
WB0002-1043 | SC150-14NH | 15.0 | 21.2 | 16.5 | 30.5 | 26.0 | 70.0 |
WB0002-1044 | SC150-16NH | 17.0 | 21.2 | 16.5 | 30.5 | 26.0 | 70.0 |
WB0002-1045 | SC150-20NH | 21.0 | 21.2 | 16.5 | 30.5 | 26.0 | 70.0 |
WB0002-1046 | SC185-10NH | 10.5 | 23.5 | 18.5 | 34.0 | 32.0 | 75.0 |
WB0002-1047 | SC185-12NH | 13.0 | 23.5 | 18.5 | 34.0 | 32.0 | 75.0 |
WB0002-1048 | SC185-14NH | 15.0 | 23.5 | 18.5 | 34.0 | 32.0 | 75.0 |
WB0002-1049 | SC185-16NH | 17.0 | 23.5 | 18.5 | 34.0 | 32.0 | 75.0 |
WB0002-1050 | SC185-20NH | 21.0 | 23.5 | 18.5 | 34.0 | 32.0 | 75.0 |
WB0002-1051 | SC240-10NH | 10.5 | 26.5 | 21.0 | 38.5 | 38.0 | 90.0 |
WB0002-1052 | SC240-12NH | 13.0 | 26.5 | 21.0 | 38.5 | 38.0 | 90.0 |
WB0002-1053 | SC240-14NH | 15.0 | 26.5 | 21.0 | 38.5 | 38.0 | 90.0 |
WB0002-1054 | SC240-16NH | 17.0 | 26.5 | 21.0 | 38.5 | 38.0 | 90.0 |
WB0002-1055 | SC240-20NH | 21.0 | 26.5 | 21.0 | 38.5 | 38.0 | 90.0 |
WB0002-1056 | SC300-10NH | 10.5 | 30.0 | 23.5 | 43.0 | 42.0 | 98.0 |
WB0002-1057 | SC300-12NH | 13.0 | 30.0 | 23.5 | 43.0 | 42.0 | 98.0 |
WB0002-1058 | SC300-14NH | 15.0 | 30.0 | 23.5 | 43.0 | 42.0 | 98.0 |
WB0002-1059 | SC300-16NH | 17.0 | 30.0 | 23.5 | 43.0 | 42.0 | 98.0 |
WB0002-1060 | SC300-20NH | 21.0 | 30.0 | 23.5 | 43.0 | 42.0 | 98.0 |
WB0002-1061 | SC400-10NH | 10.5 | 36.5 | 28.5 | 52.0 | 44.0 | 110.0 |
WB0002-1062 | SC400-12NH | 13.0 | 36.5 | 28.5 | 52.0 | 44.0 | 110.0 |
WB0002-1063 | SC400-14NH | 15.0 | 36.5 | 28.5 | 52.0 | 44.0 | 110.0 |
WB0002-1064 | SC400-16NH | 17.0 | 36.5 | 28.5 | 52.0 | 44.0 | 110.0 |
WB0002-1065 | SC400-20NH | 21.0 | 36.5 | 28.5 | 52.0 | 44.0 | 110.0 |
WB0002-1066 | SC500-10NH | 10.5 | 39.0 | 30.0 | 56.0 | 48.0 | 120.0 |
WB0002-1067 | SC500-12NH | 13.0 | 39.0 | 30.0 | 56.0 | 48.0 | 120.0 |
WB0002-1068 | SC500-14NH | 15.0 | 39.0 | 30.0 | 56.0 | 48.0 | 120.0 |
WB0002-1069 | SC500-16NH | 17.0 | 39.0 | 30.0 | 56.0 | 48.0 | 120.0 |
WB0002-1070 | SC500-20NH | 21.0 | 39.0 | 30.0 | 56.0 | 48.0 | 120.0 |
WB0002-1071 | SC630-10NH | 10.5 | 45.0 | 35.0 | 65.0 | 56.0 | 140.0 |
WB0002-1072 | SC630-12NH | 13.0 | 45.0 | 35.0 | 65.0 | 56.0 | 140.0 |
WB0002-1073 | SC630-14NH | 15.0 | 45.0 | 35.0 | 65.0 | 56.0 | 140.0 |
WB0002-1074 | SC630-16NH | 17.0 | 45.0 | 35.0 | 65.0 | 56.0 | 140.0 |
WB0002-1075 | SC630-20NH | 21.0 | 45.0 | 35.0 | 65.0 | 56.0 | 140.0 |
