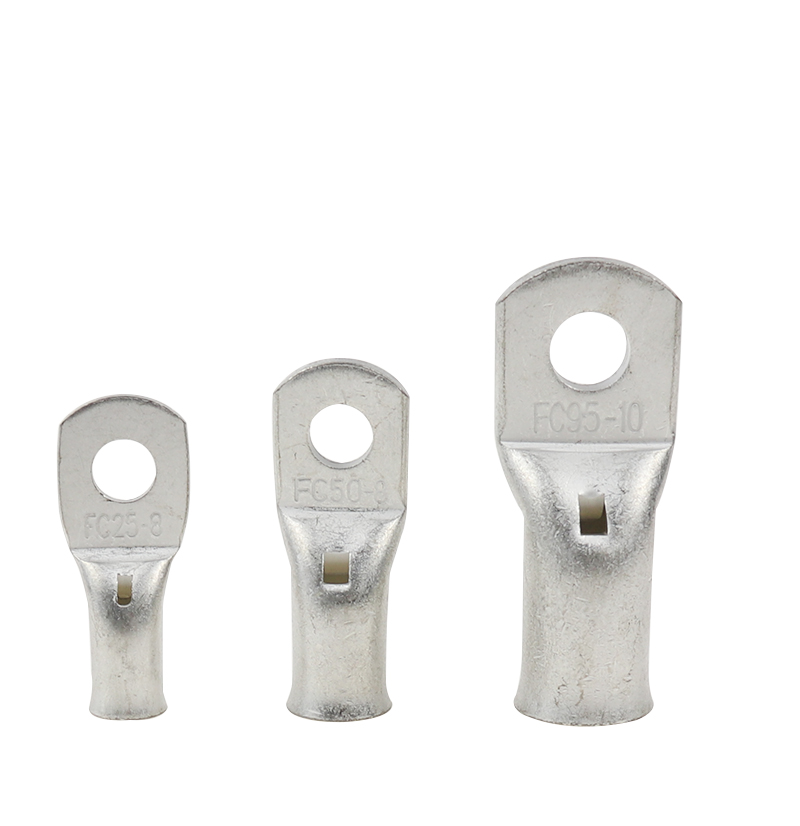

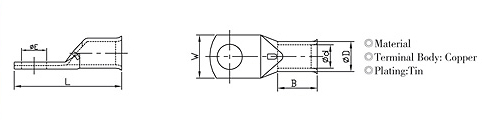

编号 | 型号 | 尺寸 | |||||
φE | ΦD | Φd | W | B | L | ||
WB0003-3001 | FC10-5 | 5.3 | 6.8 | 4.3 | 12.0 | 12.0 | 30.5 |
WB0003-3002 | FC10-6 | 6.5 | 6.8 | 4.3 | 12.0 | 12.0 | 30.5 |
WB0003-3003 | FC10-8 | 8.5 | 6.8 | 4.3 | 15.0 | 12.0 | 37.0 |
WB0003-3004 | FC10-10 | 10.5 | 6.8 | 4.3 | 16.0 | 12.0 | 41.0 |
WB0003-3005 | FC10-12 | 13.0 | 6.8 | 4.3 | 19.0 | 12.0 | 44.0 |
WB0003-3006 | FC16-5 | 5.3 | 8.0 | 5.3 | 12.0 | 14.0 | 33.3 |
WB0003-3007 | FC16-6 | 6.5 | 8.0 | 5.3 | 12.0 | 14.0 | 33.3 |
WB0003-3008 | FC16-8 | 8.5 | 8.0 | 5.3 | 16.0 | 14.0 | 37.5 |
WB0003-3009 | FC16-10 | 10.5 | 8.0 | 5.3 | 16.0 | 14.0 | 41.5 |
WB0003-3010 | FC16-12 | 13.0 | 8.0 | 5.3 | 19.0 | 14.0 | 44.0 |
WB0003-3011 | FC25-5 | 5.3 | 9.5 | 6.6 | 13.0 | 15.0 | 36.3 |
WB0003-3012 | FC25-6 | 6.5 | 9.5 | 6.6 | 13.0 | 15.0 | 36.3 |
WB0003-3013 | FC25-8 | 8.5 | 9.5 | 6.6 | 18.0 | 15.0 | 42.0 |
WB0003-3014 | FC25-10 | 10.5 | 9.5 | 6.6 | 18.0 | 15.0 | 46.0 |
WB0003-3015 | FC25-12 | 13.0 | 9.5 | 6.6 | 18.0 | 15.0 | 48.0 |
WB0003-3016 | FC25-14 | 15.0 | 9.5 | 6.6 | 20.0 | 15.0 | 52.5 |
WB0003-3017 | FC35-5 | 5.3 | 11.0 | 7.9 | 15.0 | 17.0 | 39.5 |
WB0003-3018 | FC35-6 | 6.5 | 11.0 | 7.9 | 15.0 | 17.0 | 39.5 |
WB0003-3019 | FC35-8 | 8.5 | 11.0 | 7.9 | 17.0 | 17.0 | 44.0 |
WB0003-3020 | FC35-10 | 10.5 | 11.0 | 7.9 | 17.0 | 17.0 | 49.0 |
WB0003-3021 | FC35-12 | 13.0 | 11.0 | 7.9 | 19.0 | 17.0 | 51.0 |
WB0003-3022 | FC35-14 | 15.0 | 11.0 | 7.9 | 21.0 | 17.0 | 53.5 |
WB0003-3023 | FC50-6 | 6.5 | 12.5 | 9.2 | 18.0 | 19.0 | 42.5 |
WB0003-3024 | FC50-8 | 8.5 | 12.5 | 9.2 | 18.0 | 19.0 | 47.0 |
WB0003-3025 | FC50-10 | 10.5 | 12.5 | 9.2 | 18.0 | 19.0 | 52.0 |
WB0003-3026 | FC50-12 | 13.0 | 12.5 | 9.2 | 19.0 | 19.0 | 54.0 |
WB0003-3027 | FC50-14 | 15.0 | 12.5 | 9.2 | 21.0 | 19.0 | 57.5 |
WB0003-3028 | FC50-16 | 17.0 | 12.5 | 9.2 | 26.0 | 19.0 | 61.0 |
WB0003-3029 | FC70-6 | 6.5 | 15.0 | 11.0 | 21.0 | 21.0 | 51.0 |
WB0003-3030 | FC70-8 | 8.5 | 15.0 | 11.0 | 21.0 | 21.0 | 51.0 |
WB0003-3031 | FC70-10 | 10.5 | 15.0 | 11.0 | 21.0 | 21.0 | 55.0 |
WB0003-3032 | FC70-12 | 13.0 | 15.0 | 11.0 | 22.0 | 21.0 | 59.0 |
WB0003-3033 | FC70-14 | 15.0 | 15.0 | 11.0 | 23.0 | 21.0 | 62.5 |
WB0003-3034 | FC70-16 | 17.0 | 15.0 | 11.0 | 28.0 | 21.0 | 66.0 |
WB0003-3035 | FC70-20 | 21.0 | 15.0 | 11.0 | 30.0 | 21.0 | 72.0 |
WB0003-3036 | FC95-8 | 8.5 | 17.0 | 13.1 | 25.0 | 25.0 | 56.0 |
WB0003-3037 | FC95-10 | 10.5 | 17.0 | 13.1 | 25.0 | 25.0 | 60.0 |
WB0003-3038 | FC95-12 | 13.0 | 17.0 | 13.1 | 25.0 | 25.0 | 62.0 |
WB0003-3039 | FC95-14 | 15.0 | 17.0 | 13.1 | 25.0 | 25.0 | 66.5 |
WB0003-3040 | FC95-16 | 17.0 | 17.0 | 13.1 | 25.0 | 25.0 | 70.0 |
WB0003-3041 | FC95-20 | 21.0 | 17.0 | 13.1 | 30.0 | 25.0 | 76.0 |
WB0003-3042 | FC120-8 | 8.5 | 19.0 | 14.5 | 28.0 | 26.0 | 64.0 |
WB0003-3043 | FC120-10 | 10.5 | 19.0 | 14.5 | 28.0 | 26.0 | 64.0 |
WB0003-3044 | FC120-12 | 13.0 | 19.0 | 14.5 | 28.0 | 26.0 | 66.0 |
WB0003-3045 | FC120-14 | 15.0 | 19.0 | 14.5 | 28.0 | 26.0 | 69.5 |
WB0003-3046 | FC120-16 | 17.0 | 19.0 | 14.5 | 28.0 | 26.0 | 72.0 |
WB0003-3047 | FC150-10 | 10.5 | 21.0 | 16.2 | 30.0 | 30.0 | 71.0 |
WB0003-3048 | FC150-12 | 13.0 | 21.0 | 16.2 | 30.0 | 30.0 | 73.0 |
WB0003-3049 | FC150-14 | 15.0 | 21.0 | 16.2 | 30.0 | 30.0 | 73.0 |
WB0003-3050 | FC150-16 | 17.0 | 21.0 | 16.2 | 30.0 | 30.0 | 75.0 |
WB0003-3051 | FC185-12 | 13.0 | 23.0 | 18.0 | 33.5 | 32.0 | 81.0 |
WB0003-3052 | FC185-14 | 15.0 | 23.0 | 18.0 | 33.5 | 32.0 | 85.0 |
WB0003-3053 | FC185-16 | 17.0 | 23.0 | 18.0 | 33.5 | 32.0 | 87.0 |
WB0003-3054 | FC185-20 | 21.0 | 23.0 | 18.0 | 33.5 | 32.0 | 91.0 |
WB0003-3055 | FC240-10 | 10.5 | 26.0 | 20.6 | 38.0 | 35.0 | 93.5 |
WB0003-3056 | FC240-12 | 13.0 | 26.0 | 20.6 | 38.0 | 35.0 | 93.5 |
WB0003-3057 | FC240-14 | 15.0 | 26.0 | 20.6 | 38.0 | 35.0 | 93.5 |
WB0003-3058 | FC240-16 | 17.0 | 26.0 | 20.6 | 38.0 | 35.0 | 93.5 |
WB0003-3059 | FC240-20 | 21.0 | 26.0 | 20.6 | 38.0 | 35.0 | 93.5 |
WB0003-3060 | FC300-12 | 13.0 | 28.0 | 23.0 | 41.0 | 44.0 | 96.0 |
WB0003-3061 | FC300-14 | 15.0 | 28.0 | 23.0 | 41.0 | 44.0 | 102.0 |
WB0003-3062 | FC300-16 | 17.0 | 28.0 | 23.0 | 41.0 | 44.0 | 102.0 |
WB0003-3063 | FC300-20 | 21.0 | 28.0 | 23.0 | 41.0 | 44.0 | 106.0 |
WB0003-3064 | FC400-12 | 13.0 | 32.0 | 26.0 | 46.5 | 44.0 | 115.0 |
WB0003-3065 | FC400-14 | 15.0 | 32.0 | 26.0 | 46.5 | 44.0 | 115.0 |
WB0003-3066 | FC400-16 | 17.0 | 32.0 | 26.0 | 46.5 | 44.0 | 115.0 |
WB0003-3067 | FC400-20 | 21.0 | 32.0 | 26.0 | 46.5 | 44.0 | 118.0 |
