波纹管（浪管）90°弯角快速接头

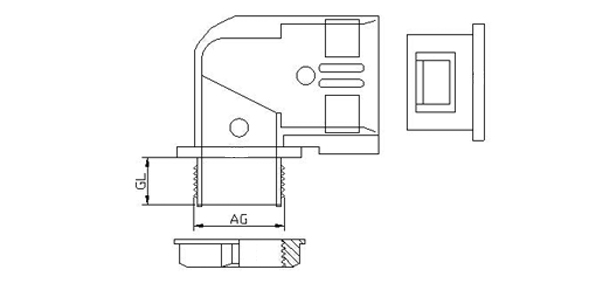

C(mm)

AD10.0

RTF-M10-10.0

M10 x 1.5

10

10

RTF-M12-10.0

M12 x 1.5

12

10

AD13.0

RTF-M16-13.0

M16 x 1.5

16

10

RTF-M18-13.0

M18 x 1.5

18

10

RTF-M20-13.0

M20 x 1.5

20

10

AD15.8

RTF-M16-15.8

M16 x 1.5

16

12.5

RTF-M18-15.8

M18 x 1.5

18

12.5

RTF-M20-15.8

M20 x 1.5

20

12.5

AD18.5

RTF-M16-18.5

M16 x 1.5

16

13

RTF-M18-18.5

M18 x 1.5

18

13

RTF-M20-18.5

M20 x 1.5

20

13

AD21.2

RTF-M20-21.2

M20 x 1.5

20

13

RTF-M24-21.2

M24 x 1.5

24

13

RTF-M25-21.2

M25 x 1.5

25

13

AD25.0

RTF-M25-25.0

M25 x 1.5

25

13

AD28.5

RTF-M25-28.5

M25 x 1.5

25

13

RTF-M27-28.5

M27 x 1.5

27

13

RTF-M30-28.5

M30 x 1.5

30

13

AD34.5

RTF-M32-34.5

M32 x 1.5

32

14.5

RTF-M36-34.5

M36 x 1.5

36

14.5

RTF-M40-34.5

M40 x 1.5

40

14.5

AD42.5

RTF-M40-42.5

M40 x 1.5

40

15

RTF-M50-42.5

M50 x 1.5

50

15

AD54.5

RTF-M50-54.5

M50 x 1.5

50

16

RTF-M63-54.5

M63 x 1.5

63

16

AD10.0

RTF-PG7-10.0

PG7

12.5

10

AD13.0

RTF-PG9-13.0

PG9

15.2

10

AD15.8

RTF-PG11-15.8

PG11

18.6

12.5

RTF-PG13.5-15.8

PG13.5

20.4

12.5

AD18.5

RTF-PG13.5-18.5

PG13.5

20.4

13

AD21.2

RTF-PG16-21.2

PG16

22.5

13

AD28.5

RTF-PG21-28.5

PG21

28.3

13

AD34.5

RTF-PG29-34.5

PG29

37

14.5

AD42.5

RTF-PG36-42.5

PG36

47

15

RTF-PG42-42.5

PG42

54

15

AD54.5

RTF-PG48-54.5

PG48

59.3

16

AD10.0

RTF-G1/4-10.0

G(PF) 1/4

13.1

10

AD13.0

RTF-G3/8-13.0

G(PF) 3/8

16.6

10

AD15.8

RTF-G3/8-15.8

G(PF) 3/8

16.6

12.5

AD18.5

RTF-G1/2-18.5

G(PF) 1/2

22.5

13

AD21.2

RTF-G1/2-21.2

G(PF) 1/2

22.5

13

AD25.0

RTF-G1/2-25.0

G(PF) 1/2

25

13

AD28.5

RTF-G3/4-28.5

G(PF)3/4

28.3

13

AD34.5

RTF-G1-34.5

G(PF)1

37

14.5

AD42.5

RTF-G1 1/4-42.5

G(PF)1 1/4

41.9

15

RTF-G1 1/2-42.5

G(PF)1 1/2

48

15

AD54.5

RTF-G1 1/2-54.5

G(PF)1 1/2

48

16

RTF-G2-54.5

G(PF)2

60

16
