编号 | 型号 | 尺寸 | |||||

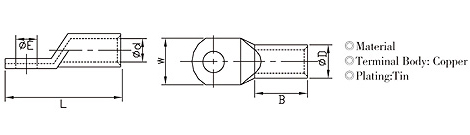

φE | ΦD | Φd | W | B | L | ||
WB0011-0001 | GPH1.5-3 | 3.2 | 3.3 | 1.8 | 6.5 | 6.0 | 15.5 |
WB0011-0002 | GPH1.5-4 | 4.3 | 3.3 | 1.8 | 6.5 | 6.0 | 17.5 |
WB0011-0003 | GPH1.5-5 | 5.3 | 3.3 | 1.8 | 9.0 | 6.0 | 19.0 |
WB0011-0004 | GPH1.5-6 | 6.4 | 3.3 | 1.8 | 9.0 | 6.0 | 22.5 |
WB0011-0005 | GPH2.5-4 | 4.3 | 4.2 | 2.2 | 7.5 | 6.0 | 17.1 |
WB0011-0006 | GPH2.5-5 | 5.3 | 4.2 | 2.2 | 8.5 | 6.0 | 19.2 |
WB0011-0007 | GPH2.5-6 | 6.4 | 4.2 | 2.2 | 9.5 | 6.0 | 22.8 |
WB0011-0008 | GPH2.5-8 | 8.4 | 4.2 | 2.2 | 13.0 | 6.0 | 28.0 |
WB0011-0009 | GPH4-4 | 4.3 | 5.0 | 3.0 | 8.5 | 8.0 | 21.8 |
WB0011-0010 | GPH4-5 | 5.3 | 5.0 | 3.0 | 9.0 | 8.0 | 22.2 |
WB0011-0011 | GPH4-6 | 6.4 | 5.0 | 3.0 | 10.0 | 8.0 | 22.2 |
WB0011-0012 | GPH6-5 | 5.3 | 6.5 | 3.5 | 10.0 | 11.0 | 28.2 |
WB0011-0013 | GPH6-6 | 6.4 | 6.5 | 3.5 | 12.0 | 11.0 | 29.1 |
WB0011-0014 | GPH6-8 | 8.4 | 6.5 | 3.5 | 15.0 | 11.0 | 31.8 |
WB0011-0015 | GPH6-10 | 10.5 | 6.5 | 3.5 | 17.0 | 11.0 | 37.0 |
WB0011-0016 | GPH10-5 | 5.3 | 7.0 | 4.5 | 12.0 | 11.0 | 28.1 |
WB0011-0017 | GPH10-6 | 6.4 | 7.0 | 4.5 | 12.0 | 11.0 | 29.0 |
WB0011-0018 | GPH10-8 | 8.4 | 7.0 | 4.5 | 14.5 | 10.0 | 33.3 |
WB0011-0019 | GPH10-10 | 10.5 | 7.0 | 4.5 | 16.0 | 11.0 | 36.9 |
WB0011-0021 | GPH16-5 | 5.3 | 8.5 | 5.5 | 12.0 | 14.0 | 33.1 |
WB0011-0022 | GPH16-6 | 6.4 | 8.5 | 5.5 | 12.5 | 14.0 | 33.5 |
WB0011-0023 | GPH16-8 | 8.4 | 8.5 | 5.5 | 13.8 | 14.0 | 38.0 |
WB0011-0024 | GPH16-10 | 10.5 | 8.5 | 5.5 | 17.0 | 14.0 | 42.0 |
WB0011-0025 | GPH16-12 | 13.2 | 8.5 | 5.5 | 20.0 | 14.0 | 44.5 |
WB0011-0026 | GPH25-6 | 6.4 | 10.0 | 7.0 | 14.0 | 15.0 | 34.6 |
WB0011-0027 | GPH25-8 | 8.4 | 10.0 | 7.0 | 16.0 | 15.0 | 39.0 |
WB0011-0028 | GPH25-10 | 10.5 | 10.0 | 7.0 | 18.0 | 15.0 | 44.5 |
WB0011-0028 | GPH25-12 | 13.2 | 10.0 | 7.0 | 20.0 | 15.0 | 47.0 |
WB0011-0029 | GPH35-6 | 6.4 | 12.0 | 8.5 | 16.7 | 16.0 | 38.0 |
WB0011-0030 | GPH35-8 | 8.4 | 12.0 | 8.5 | 17.5 | 17.0 | 43.0 |
WB0011-0031 | GPH35-10 | 10.5 | 12.0 | 8.5 | 18.5 | 16.0 | 46.0 |
WB0011-0032 | GPH35-12 | 13.2 | 12.0 | 8.5 | 21.3 | 16.0 | 50.0 |
WB0011-0033 | GPH50-8 | 8.4 | 14.0 | 10.0 | 21.0 | 19.0 | 47.0 |
WB0011-0034 | GPH50-10 | 10.5 | 14.0 | 10.0 | 21.0 | 19.0 | 51.2 |
WB0011-0035 | GPH50-12 | 13.2 | 14.0 | 10.0 | 21.5 | 19.0 | 52.0 |
WB0011-0036 | GPH70-8 | 8.4 | 16.5 | 12.0 | 23.2 | 21.0 | 52.0 |
WB0011-0037 | GPH70-10 | 10.5 | 16.5 | 12.0 | 23.2 | 21.0 | 52.0 |
WB0011-0038 | GPH70-12 | 13.2 | 16.5 | 12.0 | 23.2 | 21.0 | 55.7 |
WB0011-0039 | GPH95-8 | 8.4 | 18.0 | 13.5 | 25.6 | 25.0 | 59.0 |
WB0011-0040 | GPH95-10 | 10.5 | 18.0 | 13.5 | 25.6 | 25.0 | 59.0 |
WB0011-0041 | GPH95-12 | 13.2 | 18.0 | 13.5 | 25.6 | 25.0 | 61.0 |
WB0011-0042 | GPH120-10 | 10.5 | 19.5 | 15.0 | 28.2 | 27.0 | 68.0 |
WB0011-0043 | GPH120-12 | 13.2 | 19.5 | 15.0 | 28.2 | 27.0 | 68.0 |
WB0011-0044 | GPH120-16 | 17.0 | 19.5 | 15.0 | 30.0 | 27.0 | 74.0 |
WB0011-0045 | GPH150-10 | 10.5 | 21.2 | 16.5 | 30.6 | 30.0 | 71.0 |
WB0011-0046 | GPH150-12 | 13.2 | 21.2 | 16.5 | 30.6 | 30.0 | 71.0 |
WB0011-0047 | GPH150-16 | 17.0 | 21.2 | 16.5 | 30.6 | 30.0 | 77.0 |
WB0011-0048 | GPH185-10 | 10.5 | 24.2 | 19.0 | 35.1 | 32.0 | 79.0 |
WB0011-0049 | GPH185-12 | 13.2 | 24.2 | 19.0 | 35.1 | 32.0 | 79.0 |
WB0011-0050 | GPH185-16 | 17.0 | 24.2 | 19.0 | 35.1 | 32.0 | 83.0 |
WB0011-0051 | GPH240-12 | 13.2 | 26.2 | 21.0 | 37.7 | 36.0 | 89.0 |
WB0011-0052 | GPH240-16 | 17.0 | 26.2 | 21.0 | 37.7 | 36.0 | 89.0 |
WB0011-0053 | GPH240-20 | 21.0 | 26.2 | 21.0 | 37.7 | 36.0 | 95.0 |
WB0011-0054 | GPH300-12 | 13.2 | 30.2 | 24.0 | 44.0 | 44.0 | 110.0 |
WB0011-0055 | GPH300-16 | 17.0 | 30.2 | 24.0 | 44.0 | 44.0 | 110.0 |
WB0011-0056 | GPH300-20 | 21.0 | 30.2 | 24.0 | 44.0 | 44.0 | 110.0 |
WB0011-0057 | GPH400-16 | 17.0 | 33.7 | 27.5 | 49.0 | 50.0 | 119.0 |
WB0011-0058 | GPH400-20 | 21.0 | 33.7 | 27.5 | 49.0 | 50.0 | 119.0 |
