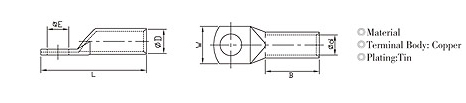

编号 | 型号 | 尺寸 | |||||
φE | ΦD | Φd | W | B | L | ||
WB0001-3001 | TL10-6 | 6.4 | 6.9 | 4.7 | 11.9 | 19.0 | 35.0 |
WB0001-3002 | TL10-8 | 8.3 | 6.9 | 4.7 | 13.5 | 19.0 | 38.0 |
WB0001-3003 | TL16-6 | 6.4 | 7.8 | 5.6 | 11.9 | 23.0 | 39.0 |
WB0001-3004 | TL16-8 | 8.3 | 7.8 | 5.6 | 13.6 | 23.0 | 42.0 |
WB0001-3005 | TL25-8 | 8.3 | 9.5 | 7.1 | 14.0 | 29.0 | 50.0 |
WB0001-3006 | TL25-10 | 10.5 | 9.5 | 7.1 | 16.0 | 29.0 | 53.0 |
WB0001-3007 | TL35-8 | 8.3 | 11.0 | 8.2 | 16.5 | 30.0 | 54.0 |
WB0001-3008 | TL35-10 | 10.5 | 11.0 | 8.2 | 16.5 | 30.0 | 58.0 |
WB0001-3009 | TL50-10 | 10.5 | 12.5 | 9.5 | 17.9 | 35.0 | 64.0 |
WB0001-3010 | TL50-12 | 13.0 | 12.5 | 9.5 | 17.9 | 35.0 | 64.0 |
WB0001-3011 | TL70-10 | 10.5 | 15.0 | 11.5 | 21.5 | 38.0 | 70.0 |
WB0001-3012 | TL70-12 | 13.0 | 15.0 | 11.5 | 21.5 | 38.0 | 70.0 |
WB0001-3013 | TL95-14 | 14.5 | 17.0 | 13.5 | 24.7 | 43.0 | 88.0 |
| WB0001-3014 | TL95-16 | 16.5 | 17.0 | 13.5 | 24.7 | 43.0 | 88.0 |
WB0001-3015 | TL120-14 | 14.5 | 20.0 | 15.6 | 28.9 | 49.0 | 94.0 |
WB0001-3016 | TL120-16 | 16.5 | 20.0 | 15.6 | 28.9 | 49.0 | 94.0 |
WB0001-3017 | TL150-14 | 14.5 | 21.0 | 16.5 | 30.4 | 56.0 | 102.0 |
WB0001-3018 | TL150-16 | 16.5 | 21.0 | 16.5 | 30.4 | 56.0 | 102.0 |
WB0001-3019 | TL185-14 | 14.5 | 23.6 | 18.4 | 37.0 | 63.0 | 113.0 |
WB0001-3020 | TL185-16 | 16.5 | 23.6 | 18.4 | 37.0 | 63.0 | 113.0 |
WB0001-3021 | TL240-14 | 14.5 | 26.4 | 21.2 | 38.5 | 66.0 | 119.0 |
WB0001-3022 | TL240-16 | 16.5 | 26.4 | 21.2 | 38.5 | 66.0 | 119.0 |
WB0001-3023 | TL300-14 | 14.5 | 28.6 | 23.4 | 42.0 | 77.0 | 133.0 |
WB0001-3024 | TL400-16 | 16.5 | 32.8 | 26.8 | 48.0 | 71.7 | 140.0 |
WB0001-3025 | S-TL10-6 | 6.4 | 6.8 | 4.7 | 11.9 | 18.0 | 35.0 |
WB0001-3026 | S-TL10-8 | 8.3 | 6.8 | 4.7 | 15.0 | 18.0 | 38.0 |
WB0001-3027 | S-TL16-6 | 6.4 | 7.8 | 5.6 | 11.9 | 21.5 | 39.0 |
WB0001-3028 | S-TL16-8 | 8.3 | 7.8 | 5.6 | 15.0 | 21.5 | 41.5 |
WB0001-3029 | S-TL25-8 | 8.3 | 9.4 | 7.1 | 15.0 | 29.0 | 50.0 |
WB0001-3030 | S-TL25-10 | 10.5 | 9.4 | 7.1 | 18.0 | 29.0 | 55.0 |
WB0001-3031 | S-TL35-8 | 8.3 | 11.3 | 8.7 | 16.0 | 31.0 | 53.0 |
WB0001-3032 | S-TL35-10 | 10.5 | 11.3 | 8.7 | 19.0 | 31.0 | 57.0 |
WB0001-3033 | S-TL50-10 | 10.5 | 12.6 | 9.8 | 20.0 | 35.0 | 63.0 |
WB0001-3034 | S-TL50-12 | 13.0 | 12.6 | 9.8 | 21.0 | 35.0 | 67.0 |
WB0001-3035 | S-TL70-10 | 10.5 | 14.7 | 11.5 | 21.5 | 39.0 | 69.0 |
WB0001-3036 | S-TL70-12 | 13.2 | 14.7 | 11.5 | 21.5 | 39.0 | 71.0 |
WB0001-3037 | S-TL95-12 | 13.0 | 16.9 | 13.5 | 24.7 | 46.0 | 79.0 |
WB0001-3038 | S-TL95-14 | 14.5 | 16.9 | 13.5 | 24.7 | 46.0 | 83.0 |
WB0001-3039 | S-TL95-16 | 16.5 | 16.9 | 13.5 | 27.0 | 46.0 | 86.0 |
WB0001-3040 | S-TL120-12 | 13.0 | 19.9 | 15.6 | 28.9 | 51.0 | 87.0 |
WB0001-3041 | S-TL120-14 | 14.5 | 19.9 | 15.6 | 28.9 | 51.0 | 91.0 |
WB0001-3042 | S-TL120-16 | 16.5 | 19.9 | 15.6 | 28.9 | 52.0 | 95.0 |
WB0001-3043 | S-TL150-12 | 13.0 | 20.9 | 16.5 | 30.4 | 56.0 | 99.0 |
WB0001-3044 | S-TL150-14 | 14.5 | 20.9 | 16.5 | 30.4 | 56.0 | 103.0 |
WB0001-3045 | S-TL150-16 | 16.5 | 20.9 | 16.5 | 30.4 | 56.0 | 103.0 |
WB0001-3046 | S-TL185-12 | 13.0 | 23.7 | 18.8 | 34.0 | 62.0 | 108.0 |
WB0001-3047 | S-TL185-14 | 14.5 | 23.7 | 18.8 | 34.0 | 62.0 | 112.0 |
WB0001-3048 | S-TL185-16 | 16.5 | 23.7 | 18.8 | 34.0 | 62.0 | 113.0 |
WB0001-3049 | S-TL240-12 | 13.0 | 26.2 | 21.2 | 38.4 | 66.0 | 114.0 |
WB0001-3050 | S-TL240-14 | 14.5 | 26.2 | 21.2 | 38.4 | 66.0 | 118.0 |
WB0001-3051 | S-TL240-16 | 16.5 | 26.2 | 21.2 | 38.4 | 66.0 | 119.0 |
WB0001-3052 | S-TL300-14 | 14.5 | 28.6 | 23.4 | 41.7 | 75.0 | 132.0 |
WB0001-3053 | S-TL300-16 | 16.5 | 28.6 | 23.4 | 41.7 | 75.0 | 132.0 |
WB0001-3054 | S-TL400-16 | 16.5 | 32.8 | 26.8 | 47.8 | 79.0 | 140.0 |
WB0001-3055 | S-TL500-16 | 16.5 | 38.4 | 29.8 | 54.8 | 78.0 | 143.0 |
