90°弯角电缆固定头

我要询价

·螺牙规格:公制牙(Metric)、PG牙、G (PF)牙、NPT牙。

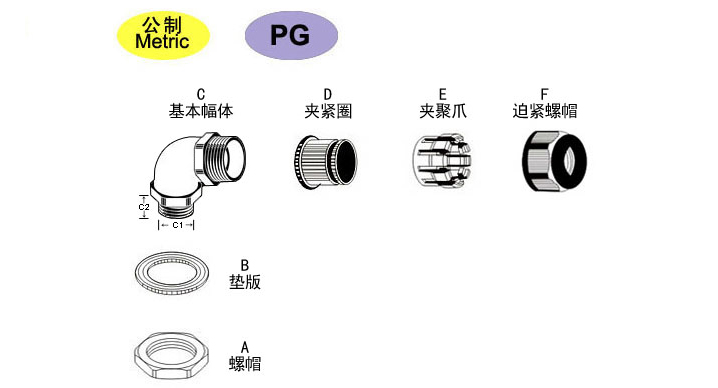

·产品材质:A.C.E.F部分采用UL认可之尼龙PA66(防火等级UL94V-2)制成;(可定制UL认可的V-0防火等级尼龙原料);

B.D部分采用三元乙丙耐候橡胶制成。(可定制耐寒、耐高温橡胶;耐高酸碱、耐化学与抗腐蚀橡胶)。

·保护等级:IP68

·工作温度:-40℃至100℃，或瞬间可耐热至120℃

·产品特性:特殊夹紧爪与夹紧圈之设计，夹紧电缆范围大，抗拉力特强，可防水、防尘、抗盐、耐弱酸、酒精、油、油脂及一般溶剂。采用弯角造型，使用于弯角环境。

·颜色种类：黑色、灰色。其它颜色可定做。

螺牙规格	编号	电缆范围	螺纹外径	螺纹长度	扳手径	包装
Thread	Item.No.	Cable Range	Thread O.D.	Thread Length	Spanner Size	Std.Pkg
		Ф(mm)	C1(mm)	C2(mm)	A&F(mm)	(pcs)
M12×1.5	ECG-M12A-5.5-ST	4-5.5mm	12mm	10mm	22/22	50
M12×1.5	ECG-M12A-8-ST	6-8mm	12mm	10mm	22/22	50
M16×1.5	ECG-M16A-7-ST	4-7mm	16mm	10mm	22/22	50
M16×1.5	ECG-M16A-10-ST	6-10mm	16mm	10mm	22/22	50
M20×1.5	ECG-M20A-11	6-11mm	20mm	15mm	27/27	50
M20×1.5	ECG-M20A-14	9-14mm	20mm	15mm	27/27	50
	ECG-M20AZ-13	10-13mm	20mm	15mm	27/33	50
	ECG-M20AZ-15	12-15mm	20mm	15mm	27/33	50
M25×1.5	ECG-M25A-16	10-16mm	25mm	15mm	33/33	50
M25×1.5	ECG-M25A-18	13-18mm	25mm	15mm	33/33	50
	ECG-M25AZ-17	14-17mm	25mm	15mm	33/36	50
	ECG-M25AZ-20	17-20mm	25mm	15mm	33/36	50
M32×1.5	ECG-M32A-22	15-22mm	32mm	15mm	41/42	10
M32×1.5	ECG-M32A-25	18-25mm	32mm	15mm	41/42	10
	ECG-M32AZ-23	15-23mm	32mm	15mm	41/46	10
	ECG-M32AZ-26	20-26mm	32mm	15mm	41/46	10
M40×1.5	ECG-M40A-26	20-26mm	40mm	20mm	50/52	10
M40×1.5	ECG-M40A-31	24-31mm	40mm	20mm	50/52	10
M50×1.5	ECG-M50A-36	25-33mm	50mm	20mm	50/52	10
M50×1.5	ECG-M50A-41	33-41mm	50mm	20mm	50/52	10
PG7×1.5	ECG-PG7A-5.5-ST	4-5.5mm	12mm	10mm	22/22	50
PG7×1.5	ECG-PG7A-8-ST	6-8mm	12mm	10mm	22/22	50
G 1/2	ECG-PF1/2A-11	6-11mm	20.955mm	15mm	27/27	50
G 1/2	ECG-PF1/2A-14	9-14mm	20.955mm	15mm	27/27	50
	ECG-PF1/2AZ-12	7-12mm	20.955mm	15mm	27/33	50
	ECG-PF1/2AZ-15	10-15mm	20.955mm	15mm	27/33	50
