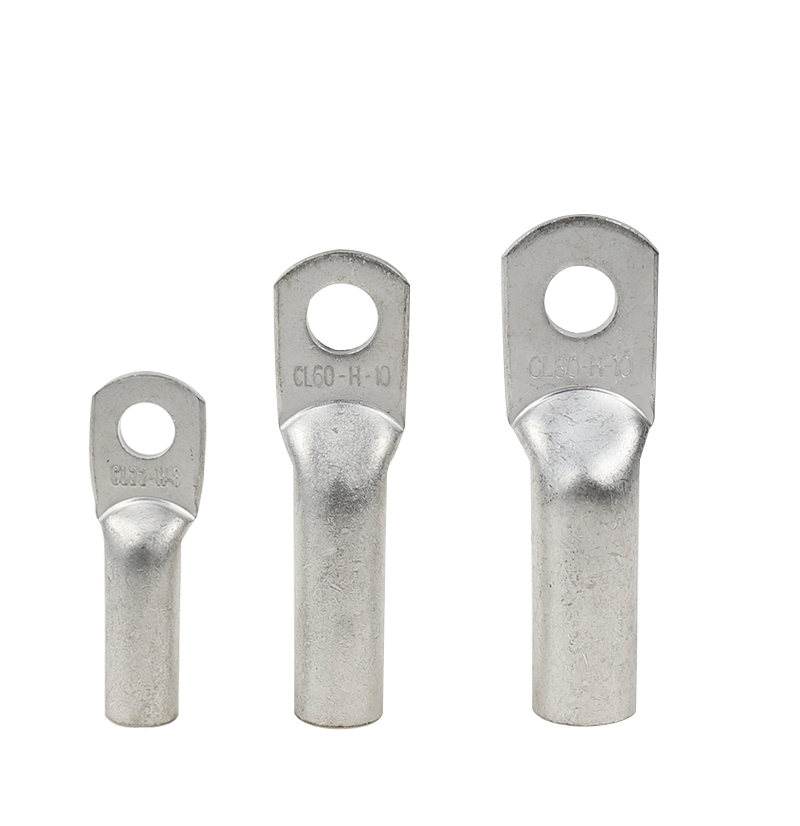

编号 | 型号 | 尺寸 | |||||
φE | ΦD | Φd | W | B | L | ||
WB0005-0001 | CL14-H-6 | 6.4 | 8.8 | 5.8 | 18.3 | 28.5 | 50.0 |
WB0005-0002 | CL22-H-8 | 8.4 | 11.3 | 7.7 | 18.3 | 28.5 | 52.0 |
WB0005-0003 | CL38-H-10 | 10.5 | 12.4 | 9.8 | 18.3 | 34.0 | 64.0 |
WB0005-0004 | CL38-H-12 | 13.0 | 12.4 | 9.8 | 18.3 | 34.0 | 64.0 |
WB0005-0005 | CL60-H-10 | 10.5 | 14.0 | 11.0 | 20.5 | 36.0 | 70.0 |
WB0005-0006 | CL60-H-12 | 13.0 | 14.0 | 11.0 | 20.5 | 36.0 | 70.0 |
WB0005-0007 | CL70-H-10 | 10.5 | 15.0 | 12.0 | 21.4 | 38.0 | 72.0 |
WB0005-0008 | CL70-H-12 | 13.0 | 15.0 | 12.0 | 21.4 | 38.0 | 72.0 |
WB0005-0009 | CL80-H-12 | 13.0 | 16.0 | 13.0 | 23.2 | 38.0 | 75.0 |
WB0005-0010 | CL100-H-12 | 13.0 | 18.0 | 14.0 | 26.0 | 40.0 | 75.0 |
WB0005-0011 | CL125-H-12 | 13.0 | 20.0 | 16.0 | 28.0 | 40.0 | 85.0 |
WB0005-0012 | CL150-H-12 | 13.0 | 22.0 | 17.0 | 31.5 | 46.0 | 94.0 |
WB0005-0013 | CL180-H-12 | 13.0 | 23.0 | 18.2 | 33.0 | 46.0 | 98.0 |
WB0005-0014 | CL200-H-12 | 13.0 | 26.0 | 20.0 | 37.0 | 48.0 | 104.0 |
WB0005-0015 | CL250-H-12 | 13.0 | 28.0 | 22.0 | 41.0 | 48.0 | 114.0 |
WB0005-0016 | CL325-H-12 | 13.0 | 32.0 | 25.0 | 46.0 | 50.0 | 118.0 |
WB0005-0017 | CL400-H-12 | 13.0 | 37.0 | 30.0 | 54.0 | 60.0 | 130.0 |
WB0005-0018 | CL500-H-12 | 13.0 | 40.0 | 31.0 | 57.5 | 60.0 | 150.0 |
WB0005-0019 | B-CL14-H-6 | 6.4 | 8.3 | 5.8 | 18.3 | 28.5 | 50.0 |
WB0005-0020 | B-CL22-H-8 | 8.4 | 10.7 | 7.7 | 18.3 | 28.5 | 52.0 |
WB0005-0021 | B-CL38-H-10 | 10.5 | 11.9 | 9.8 | 17.2 | 34.0 | 64.0 |
WB0005-0022 | B-CL38-H-12 | 13.0 | 11.9 | 9.8 | 17.2 | 34.0 | 64.0 |
WB0005-0023 | B-CL60-H-10 | 10.5 | 13.5 | 11.0 | 20.0 | 36.0 | 70.0 |
WB0005-0024 | B-CL60-H-12 | 13.0 | 13.5 | 11.0 | 20.0 | 36.0 | 70.0 |
WB0005-0025 | B-CL70-H-10 | 10.5 | 14.5 | 12.0 | 21.4 | 38.0 | 72.0 |
WB0005-0026 | B-CL70-H-12 | 13.0 | 14.5 | 12.0 | 21.4 | 38.0 | 72.0 |
WB0005-0027 | B-CL80-H-12 | 13.0 | 15.5 | 13.0 | 23.2 | 38.0 | 75.0 |
WB0005-0028 | B-CL100-H-12 | 13.0 | 17.3 | 14.0 | 25.5 | 40.0 | 75.0 |
WB0005-0029 | B-CL125-H-12 | 13.0 | 19.3 | 16.0 | 28.0 | 40.0 | 85.0 |
WB0005-0030 | B-CL150-H-12 | 13.0 | 21.1 | 17.0 | 30.5 | 46.0 | 94.0 |
WB0005-0031 | B-CL180-H-12 | 13.0 | 22.1 | 18.2 | 32.5 | 46.0 | 98.0 |
WB0005-0032 | B-CL200-H-12 | 13.0 | 24.9 | 20.0 | 36.0 | 48.0 | 104.0 |
WB0005-0033 | B-CL250-H-12 | 13.0 | 26.9 | 22.0 | 39.5 | 48.0 | 114.0 |
WB0005-0034 | B-CL325-H-12 | 13.0 | 30.7 | 25.0 | 45.0 | 50.0 | 118.0 |
WB0005-0035 | B-CL400-H-12 | 13.0 | 35.7 | 30.0 | 54.0 | 60.0 | 130.0 |
WB0005-0036 | B-CL500-H-12 | 13.0 | 38.4 | 31.0 | 56.0 | 60.0 | 150.0 |
