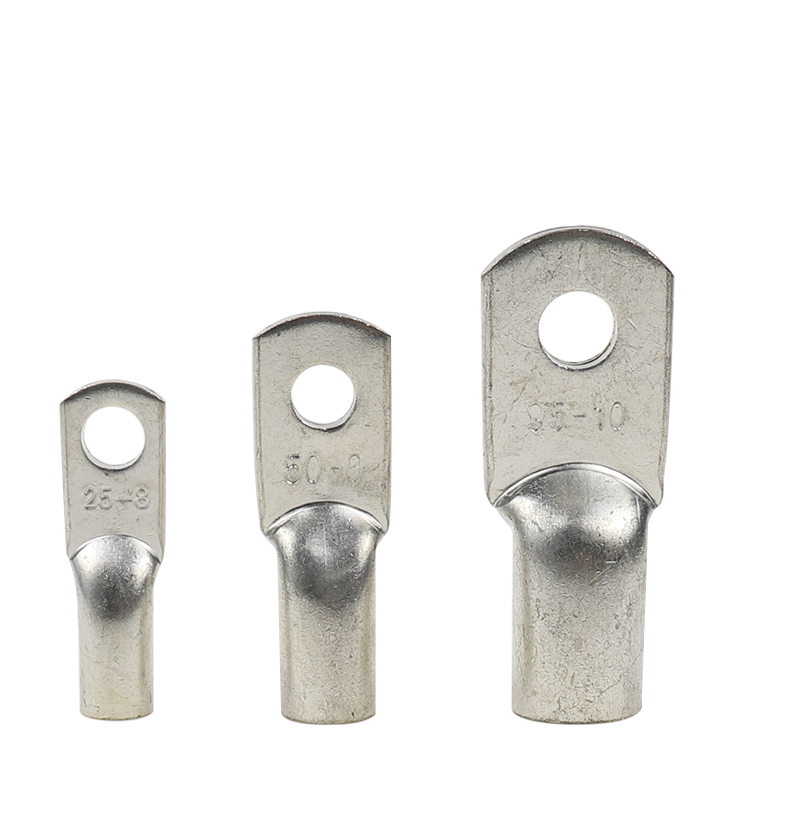

JG船用铜接线端子

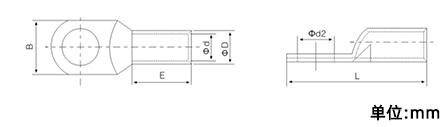

Φd2

B

L

ΦD

Φd

E

JG10-6

6.5

12

38

8

5.4

18

JG10-8

8.5

12

38

8

5.4

18

JG10-10

10.5

14

38

8

5.4

18

JG16-6

6.5

13

40

9

6

18

JG16-8

8.5

13

40

9

6

18

JG16-10

10.5

15

40

9

6

18

JG16-12

13

17

46

9

6

18

JG25-6

6.5

14

45

10

7

19

JG25-8

8.5

14

45

10

7

19

JG25-10

10.5

15

45

10

7

19

JG25-12

13

17

48

10

7

19

JG35-6

6.5

16

50

11

8

22

JG35-8

8.5

16

50

11

8

22

JG35-10

10.5

16

50

11

8

22

JG35-12

13

18

50

11

8

22

JG50-6

6.5

18.5

54.5

13

10

23

JG50-8

8.5

18.5

54.5

13

10

23

JG50-10

10.5

18.5

54.5

13

10

23

JG50-12

13

19

54.5

13

10

23

JG50-14

15

22.5

54.5

13

10

23

JG50-16

17

22.5

54.5

13

10

23

JG70-8

8.5

22.5

60

16

12

25

JG70-10

10.5

22.5

60

16

12

25

JG70-12

13

22.5

60

16

12

25

JG70-14

15

22.5

60

16

12

25

JG70-16

17

24

60

16

12

25

JG95-8

8

25.5

66

18

14

26

JG95-10

10.5

25.5

66

18

14

26

JG95-12

13

25.5

66

18

14

26

JG95-14

15

25.5

66

18

14

26

JG95-16

17

25.5

66

18

14

26

JG120-10

10.5

28

72

20

16

29

JG120-12

13

28

72

20

16

29

JG120-14

15

28

72

20

16

29

JG120-16

17

28

72

20

16

29

JG150-10

10.5

31

80

22

17

34

JG150-12

13

31

80

22

17

34

JG150-14

15

31

80

22

17

34

JG150-16

17

31

80

22

17

34

JG185-12

13

35.5

86

24

19

34

JG185-14

15

35.5

86

24

19

34

JG185-16

17

35.5

86

24

19

34

JG240-12

13

39

93

26

21

37

JG240-14

15

39

93

26

21

37

JG240-16

17

39

93

26

21

37

JG240-20

21

39

93

26

21

37

JG300-12

13

43

103

30

24

42

JG300-14

15

43

103

30

24

42

JG300-16

17

43

103

30

24

42

JG300-20

21

43

103

30

24

42

JG400-12

13

49

114

34

27

48

JG400-14

15

49

114

34

27

48

JG400-16

17

49

114

34

27

48

JG400-20

21

49

114

34

27

48

JG500-16

17

55

124

38

30

50

JG500-20

21

55

124

38

30

50
