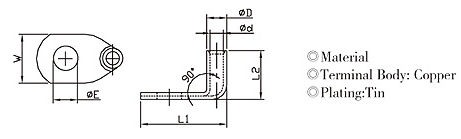

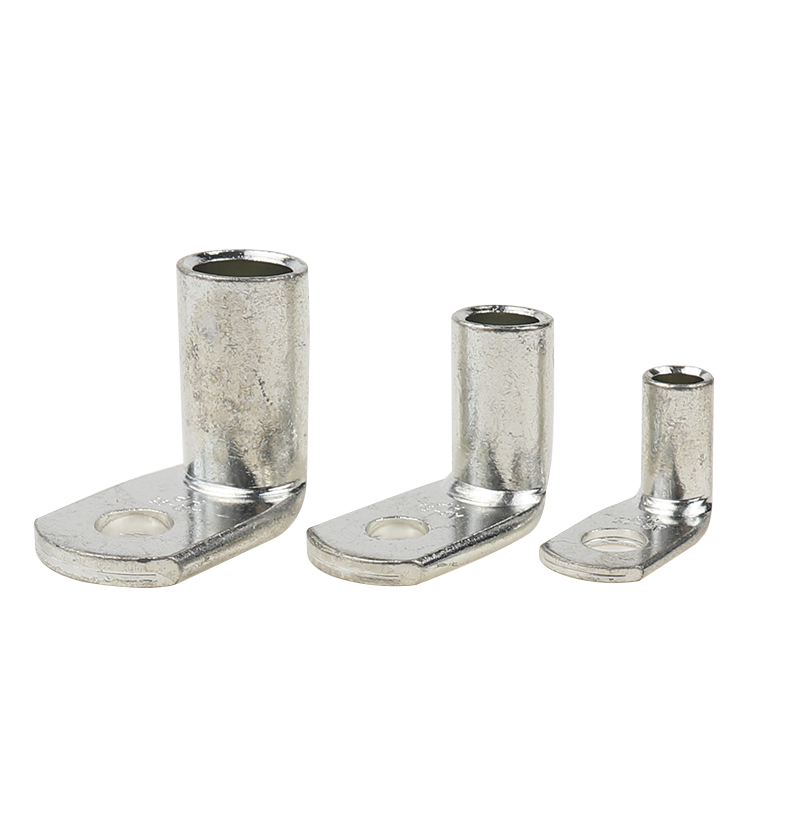

GPH90°铜管端子

φE

ΦD

Φd

W

L2

L1

WB0015-0001

GPH90-6/5

5.3

6.5

3.5

10.0

14.0

22.5

WB0015-0002

GPH90-6/6

6.4

6.5

3.5

12.0

14.0

24.0

WB0015-0003

GPH90-6/8

8.5

6.5

3.5

15.0

14.0

27.5

WB0015-0004

GPH90-6/10

10.5

6.5

3.5

16.0

14.0

29.5

WB0015-0005

GPH90-10/5

5.3

7.0

4.5

12.0

16.0

23.0

WB0015-0006

GPH90-10/6

6.4

7.0

4.5

12.0

16.0

24.0

WB0015-0007

GPH90-10/8

8.5

7.0

4.5

15.0

16.0

28.0

WB0015-0008

GPH90-10/10

10.5

7.0

4.5

18.0

16.0

29.5

WB0015-0009

GPH90-16/5

5.3

8.5

5.5

12.0

20.0

22.5

WB0015-0010

GPH90-16/6

6.4

8.5

5.5

14.0

20.0

24.0

WB0015-0011

GPH90-16/8

8.5

8.5

5.5

15.0

20.0

28.0

WB0015-0012

GPH90-16/10

10.5

8.5

5.5

18.0

20.0

31.0

WB0015-0013

GPH90-16/12

13.0

8.5

5.5

19.0

20.0

32.0

WB0015-0014

GPH90-25/6

6.4

10.0

6.9

15.0

21.0

27.5

WB0015-0015

GPH90-25/8

8.4

10.0

6.9

16.0

21.0

32.5

WB0015-0016

GPH90-25/10

10.5

10.0

6.9

18.0

21.0

32.5

WB0015-0017

GPH90-25/12

13.0

10.0

6.9

19.0

21.0

34.0

WB0015-0018

GPH90-35/6

6.4

12.0

8.5

17.0

24.0

28.5

WB0015-0019

GPH90-35/8

8.5

12.0

8.5

17.0

24.0

34.0

WB0015-0020

GPH90-35/10

10.5

12.0

8.5

20.0

24.0

34.0

WB0015-0021

GPH90-35/12

13.0

12.0

8.5

22.0

24.0

40.5

WB0015-0022

GPH90-50/6

6.4

14.0

10.0

20.0

28.5

37.0

WB0015-0023

GPH90-50/8

8.4

14.0

10.0

20.0

28.5

40.5

WB0015-0024

GPH90-50/10

10.5

14.0

10.0

20.0

28.5

40.5

WB0015-0025

GPH90-50/12

13.0

14.0

10.0

23.0

28.5

42.5

WB0015-0026

GPH90-50/16

17.0

14.0

10.0.

28.0

28.5

50.5

WB0015-0027

GPH90-70/8

8.5

16.5

12.0

24.0

31.0

43.0

WB0015-0028

GPH90-7010

10.5

16.5

12.0

24.0

31.0

43.0

WB0015-0029

GPH90-70/12

13.0

16.5

12.0

24.0

31.0

44.5

WB0015-0030

GPH90-70/16

17.0

16.5

12.0

28.0

31.0

53.0

WB0015-0031

GPH90-70/20

21.0

16.5

12.0

30.0

31.0

59.0

WB0015-0032

GPH90-95/8

8.5

18.0

13.5

26.0

35.0

44.5

WB0015-0033

GPH90-95/10

10.5

18.0

13.5

26.0

35.0

44.5

WB0015-0034

GPH90-95/12

13.0

18.0

13.5

26.0

35.0

46.5

WB0015-0035

GPH90-95/16

17.0

18.0

13.5

28.0

35.0

52.0

WB0015-0036

GPH90-95/20

21.0

18.0

13.5

30.5

35.0

59.0

WB0015-0037

GPH90-120/10

10.5

19.5

15.0

29.0

35.5

49.0

WB0015-0038

GPH90-120/12

13.0

19.5

15.0

29.0

35.5

49.0

WB0015-0039

GPH90-120/16

17.0

19.5

15.0

29.0

35.5

55.0

WB0015-0040

GPH90-120/20

21.0

19.5

15.0

30.5

35.5

61.0

WB0015-0041

GPH90-150/10

10.5

21.0

16.5

31.0

40.0

48.0

WB0015-0042

GPH90-150/12

13.0

21.0

16.5

31.0

40.0

51.0

WB0015-0043

GPH90-150/16

17.0

21.0

16.5

31.0

40.0

56.0

WB0015-0044

GPH90-150/20

21.0

21.0

16.5

34.0

40.0

61.5

WB0015-0045

GPH90-185/12

13.0

24.0

19.0

35.0

46.0

58.5

WB0015-0046

GPH90-185/16

17.0

24.0

19.0

35.0

46.0

58.5

WB0015-0047

GPH90-185/20

21.0

24.0

19.0

35.0

46.0

65.0

WB0015-0048

GPH90-240/12

13.0

26.0

21.0

40.0

50.0

54.0

WB0015-0049

GPH90-240/16

17.0

26.0

21.0

40.0

50.0

60.0

WB0015-0050

GPH90-240/20

21.0

26.0

21.0

40.0

50.0

67.8

WB0015-0051

GPH90-300/12

13.0

29.5

23.5

43.0

59.0

74.5

WB0015-0052

GPH90-300/16

17.0

29.5

23.5

43.0

59.0

64.0

WB0015-0053

GPH90-300/20

21.0

29.5

23.5

43.0

59.0

70.5

WB0015-0054

GPH90-400/12

13.0

34.0

27.0

49.0

62.0

79.0

WB0015-0055

GPH90-400/16

17.0

34.0

27.0

49.0

62.0

68.5

WB0015-0056

GPH90-400/20

21.0

34.0

27.0

49.0

62.0

75.0
